Reference tracts

Reference tracts represent prior information about tract trajectories, which are used by neighbourhood tractography methods to select corresponding pathways in diffusion data sets. It should be noted that heuristic and probabilistic neighbourhood tractography use different forms of reference tract, although if you plan to create a custom reference, the process is nearly identical for the two cases.

Using standard reference tracts

Since version 1.0.0, TractoR has been supplied with a set of standard reference tracts for both heuristic and probabilistic neighbourhood tractography (NT). These reference tracts are based on a white matter tract atlas kindly made available by Dr Susumu Mori’s lab at Johns Hopkins University. Further information about the atlas can be found at http://cmrm.med.jhmi.edu/ and in Ref. (1) below. If you use these reference tracts in your work, please cite Ref. (2) below.

In version 3.1.0, a new set of reference tracts was added, based on manual selection of tracts from 80 healthy adults aged 25–64. These will be used if the TRACTOR_REFTRACT_SET environment variable is set to miua2017, and this is recommended for new studies. If you do use these reference tracts in your work, please cite Ref. (3) below.

Using these standard references is by far the easiest way to start using NT. TractoR “knows” where to find them, so you need only to specify the tract name when running the hnt-eval or pnt-data experiment scripts. Available tract names as of TractoR 2.1.0 are:

Tract name(s) Structure
genu corpus callosum genu, forceps anterior
splenium corpus callosum splenium, forceps posterior
cst_left, cst_right left and right corticospinal or pyramidal tracts
cing_left, cing_right left and right cingula, dorsal parts
vcing_left, vcing_right left and right cingula, ventral parts
atr_left, atr_right left and right anterior thalamic radiations
arcuate_left, arcuate_right left and right arcuate fasciculi
uncinate_left, uncinate_right left and right uncinate fasciculi
ilf_left, ilf_right left and right inferior longitudinal fasciculi

Creating custom reference tracts

If you wish to segment a tract for which there is not yet a standard reference tract, or if your data set is somehow unusual so that the standard reference tracts are inappropriate, you need to create a custom reference tract from one of your scans. Once created, the reference tract may be reused for later studies.

TractoR scripts which are likely to be useful for creating a custom reference tract include mkroi (to create a region of interest), track (to generate a series of tract images, from which to choose a reference tract), and hnt-ref or pnt-ref (to create reference tracts for use with HNT or PNT, respectively).

Let’s assume that we wish to create a reference tract representing the corpus callosum genu. We begin by creating a directory for this experiment, and changing to this directory. For example,

mkdir /expts/hnt-genu
cd /expts/hnt-genu

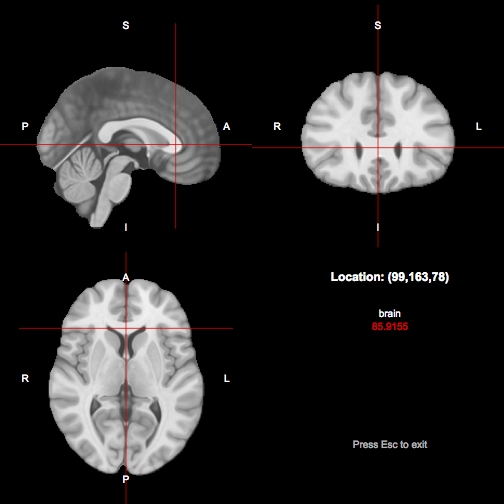

Next we observe that the point (99,163,78) appears to be within the genu in an MNI standard space brain volume. A suitable location such as this can be chosen using tractor view or FSL’s data viewer. We see the location shown below:

genu seed point location

We next need to choose a subject in which to generate our reference tract. In this tutorial we will assume that the session directory for this subject is based at the location /data/refsubject. Note that this session must already be fully preprocessed. We will seed throughout a region around the location corresponding to the point we found in MNI standard space, on the basis that at least one point in this region stands a good chance of generating a tract suitable for use as the reference. First, we need to transform the MNI point into this subject’s diffusion space:

tractor transform /data/refsubject 99,163,78 PointType:R SourceSpace:MNI TargetSpace:diffusion Nearest:true

Let’s say that produces the native space seed point (49,59,33). The command

tractor mkroi /data/refsubject 49,59,33 Width:5 ROIName:genu_region

generates a region of interest (called “genu_region.nii.gz”) of width 5 voxels in each dimension, and then

tractor track /data/refsubject genu_region Streamlines:1000x Strategy:voxelwise

will generate a (large) number of images representing tracts generated by seeding at each voxel in the ROI. Voxels with very low anisotropy (say, FA less than 0.2) may be excluded, on the basis that they are unlikely to generate useful tracts, using the AnisotropyThreshold option to track:

tractor track /data/refsubject genu_region Streamlines:1000x Strategy:voxelwise AnisotropyThreshold:0.2

The resulting tract image file names contain the seed point that generated them, using the R convention, starting at 1. PNG graphics files may be produced from some or all of these images using the slice script. For example,

tractor slice /data/refsubject@FA tract_47_60_32 X:47 Y:60 Z:32 GraphicName:tract_47_60_32

This process, or any other, can be used and repeated until a seed point has been found that produces an acceptable segmentation of the genu for use as a reference tract. The important characteristics are shape and length, so particular care should be taken to ensure that these are appropriate in the reference tract.

Given a chosen seed point, the reference tract can be generated in the appropriate form using the hnt-ref or pnt-ref scripts, depending on whether you are planning to use heuristic or probabilistic NT. For example,

tractor hnt-ref /data/refsubject 47,60,32 TractName:genu

This will create a file called genu_ref.Rdata, which contains information about the reference tract for use in the testing phase. The syntax for pnt-ref is identical; only the script name needs to be changed.

References

  1. K. Hua et al., Neuroimage 39(1):336-347, 2008.
  2. S. Muñoz Maniega et al., Proceedings of the ISMRM 16:3318, 2008.
  3. S. Muñoz Maniega et al., Communications in Computer and Information Science, vol. 723, pp. 1–11, 2017.
